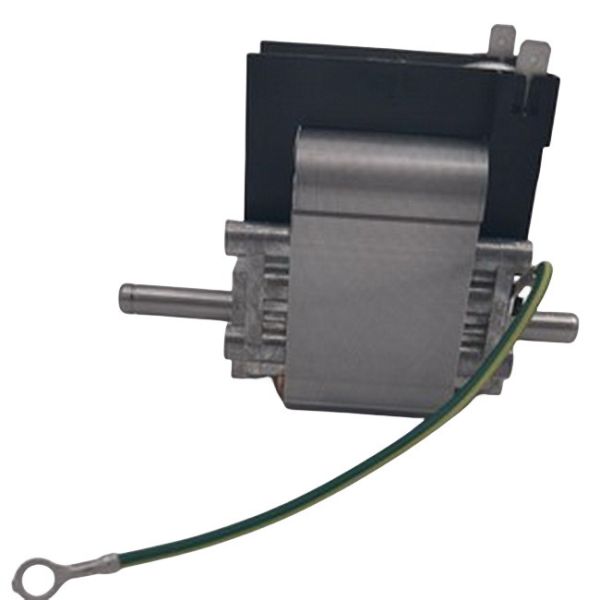

China 2.38" C Frame Motor 92W 1.5A dual extension shaft AC Single Phase Shade Pole
The C frame motor is equipped with a dual extension shaft, providing flexibility in applications where multiple shafts are required. It can be used in various applications that require a small motor size, moderate power consumption, and reliable operation.
Quick Review:
| Product Name: | 2.38" 92W 1.5A C Frame Motor dual extension shaft AC Single Phase Shade Pole | Motor Type: | MH6038-38593 |
| Rated Voltage/Frequency: | 115Vac/60Hz | Current(A): | 1.5 |
| Input Power(W): | 92 | Output Speed(RPM): | 3000 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | NMB Ball bearing |
| Insulation Class: | H | Agency: | UL/ETL |
| OutputTorque( in-lbs): | 8.5IN.LBS@2600RPM | Protect Method: | TP |
Note: Can be customized according to customer requirements, please contanct us.
Production Feature :
1. 2.38" Efficient Electrical Steel C-FRAME Motor
2. Zinc die-cast structure Multiple shaft size options
3. Multiple installation structures
4. Quick-connect terminal connection
5. Optional wire structure connection
6. Independent ground wire terminal design
7. Dual shaft design.
8. Application:Mechnical and fan duty
Air Flow Curve
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
Thank you very much for viewing this page
Sincerely looking forward to our cooperation!
